Awnings Available in Caboolture
1000 Series
Straight Drop - No Guides – Hold Downs - Spring Operated
This straight-drop external awning is like an internal roller and is perfect for conserving space. This awning is spring-loaded with an up or down control and a very easy pull-down and hook design.
The awning can be rolled away smartly into an optional colour-coordinated weather box (hood), providing protection for your awning when retracted.
Standard Colours: Weather Box, 5-Sided Aluminium Bottom Bar: White, Black, Paperbark, Smooth Cream, Monument, Treasured Silver.
Benefits and Options
- Pull Down Stick
- Stainless Steel Brackets Upgrade Available
- 5-Sided Aluminium Bottom Bar
- 63mm Aluminium Top Tube
- Stainless Saddle and Hook
- Weather Box (Hood)
- Zinc Plated Brackets Standard
- No Bottom Valance is Available

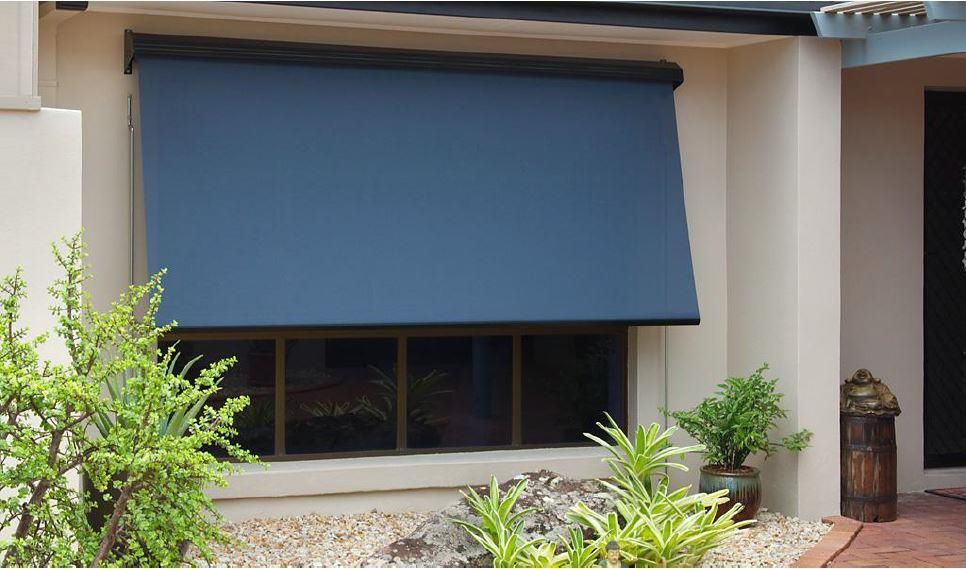

2000 Series
Automatic (Auto Lock Arm) – Guide Bars
Automatic Roll-Up Fabric Awnings are not automated as such, but they roll up easily (automatically) hence the name.
This product offers the benefits of privacy and sun protection and is suitable for ground-floor windows and balconies.
The minimal projection conserves space as it allows close fitting to windows.
Self-locking arms allow simple shade adjustment by hand or by a pull stick to variable heights.
The awning can be rolled away smartly into an optional colour-coordinated weather box (hood), providing protection for your awning fabric when not in use.
Standard Colours: Weather Box, 5-Sided Aluminium Bottom Bar: White, Black, Paperbark, Smooth Cream, Monument, Treasured Silver
Benefits and Options
- Automatic Arms
- Zinc-plated guide bar and brackets standard
- 63mm Aluminium Top Tube
- Upgrade to Stainless Steel guide bar & brackets
- 5-Sided Aluminium Bottom Bar
- Grade 316 Stainless Steel and UV-stabilised Nylon
- Pull Down Stick
- Bottom Valance (straight, scalloped or none)
- Weather Box (Hood)

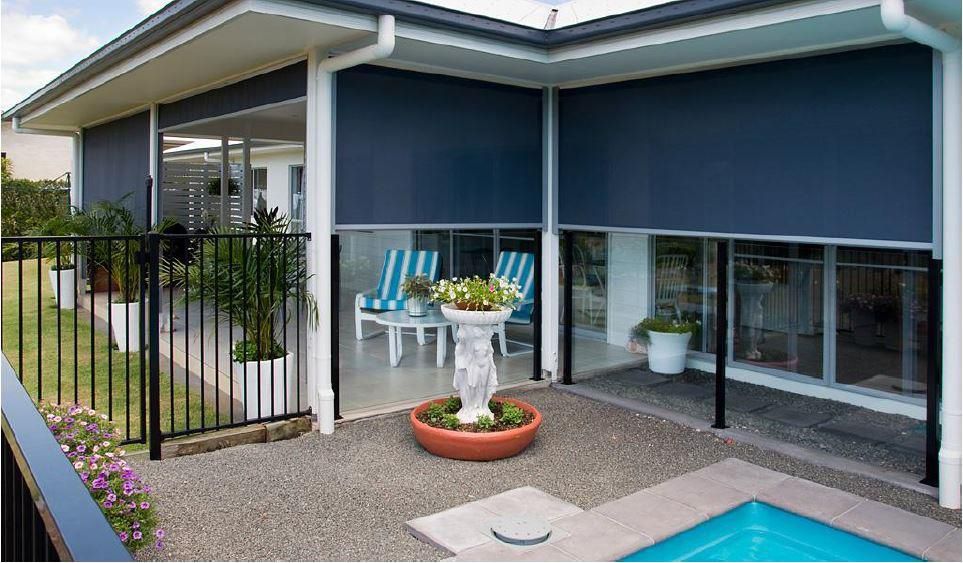

3000 Series
Straight Drop - Multi-Stop - Side Channel - Spring Operated
The Multi-Stop is designed to stop at any point you wish, giving you more control in adjusting for your outdoor area.
This spring-operated awning has side channels down each side with the bottom rail, which runs up and down inside the channels. By twisting the bottom rail, the awning easily locks in at any position.
Standard Colours: Side Channel, 5-Sided Aluminium Bottom Bar: White, Black, Paperbark, Smooth Cream, Monument, Treasured Silver
Benefits and Options
- Unique aluminium side channels can be used as posts
- Unique channel post feet
- 5-sided aluminium bottom bar
- 63mm aluminium top tube
- Easy to face fit
- Unique snap infill for face fit (infill conceals screws to give great appearance)
- Stainless steel brackets
- Pull-down stick and pull-down handle (both optional)
- No weather box or bottom valance is available.
4000 Series
Straight Drop - Drop Arm Awning - Crank Handle
Designed to withstand adverse weather conditions, drop-arm awnings operate by using concealed springs in the arms to extend the awning. This creates a larger area between the awning and the window enabling greater airflow and giving room for windows to be opened.
Control harsh sun conditions and uncomfortable heat as easily as pushing a button with the option for motorised operation.
Standard Colours: Weather Box, Extra Heavy Duty Aluminium Bottom Rail: White, Black, Paperbark, Smooth Cream, Monument, Treasured Silver
Benefits and Options
- The extra heavy-duty aluminium bottom rail
- Heavy-duty aluminium spring-loaded arms
- 63mm aluminium top tube
- Aluminium brackets
- Gearboxes - colours: black, white, ivory, and grey
- Weather Box (hood)
- Crank handle (black or white)
- No bottom valance is available
5000 Series
Straight Drop - Lock Down Latches - Crank Handle
Straight Drop Lock Down Awnings are similar to internal roller blinds in design and construction with simplicity and cost effectiveness in mind. These awnings are ideally installed to create shading where continual access is not required.
Benefits and Options
- Grade 316 stainless steel lock-down latch set
- Extra heavy-duty aluminium bottom rail
- 80mm t6 aluminium top tube
- Aluminium brackets
- Gearboxes - four colours: black, white, ivory and grey
- Aluminium cassette (hood) with dye-cast aluminium end caps (usually plastic)
- Weather Box (hood) is also available.
- Crank handle (black or white)
- No bottom valance is available
6000 Series
Straight Drop - Side Channel - Crank Handle
Effective and easy to use, the smooth crank operation of the Side Channel awning is designed without pull ropes or zip closures.
The channels securely house the fabric, even in wind exposure*, and the extra heavy-duty aluminium bottom rail, integral to the design of this side channel system, ensures the blind will not bow in the middle.
The optional aluminium cassette (hood) will protect the awning fabric when not in use.
Standard Colours: White, Black, Paperbark, Smooth Cream, Monument, Treasured Silver.
Benefits and Options
- Side channel
- Extra heavy-duty aluminium bottom rail
- 80mm t6 aluminium top tube
- Aluminium brackets
- Unique aluminium side channels can be used as posts
- Unique channel post feet
- Easy to face fit
- Unique snap infill for face fit (infill conceals screws to give great appearance)
- Standard felt strips
- Optional weather strip
- Gearboxes - four colours: black, white, ivory, and grey
- Aluminium cassette (hood)
- Crank handle (black or white)
- No bottom valance is available
7000 Series
Straight Drop - Wire Guide - Crank Handle
The self-aligning system of the wire guide cables guides the awning up and down, offering greater stability and beautifully controlled movement.
A strong, practical, and simple system with heavy-duty geared crank handle operation.
This stylish awning solution offers strength and reliable operation. Grade 316 stainless steel cables on each side of the blind hold the fabric in place.
The cables run vertically and are locked down into place to prevent the blind from moving in the wind. Stainless Steel tensioners are used to ensure the cables are tight.
The optional aluminium cassette (hood) will protect the awning fabric when not in use.
Standard Colours: Extra Heavy Duty Aluminium Bottom Rail, Aluminium Cassette (Hood): White, Black, Paperbark, Smooth Cream, Monument, Treasured Silver.
Benefits and Options
- Extra heavy-duty aluminium bottom rail
- 80mm t6 aluminium top tube
- Aluminium brackets
- Gearboxes - four colours: black, white, ivory, and grey
- Aluminium cassette (hood) with dye-cast aluminium end caps (usually plastic)
- Weather Box (hood) is also available.
- Crank handle (black or white)
- Grade 316 stainless steel 3.2mm wire
- Grade 316 stainless steel lock-down latch set
- Bottom wire bracket (deck plate, angle bracket or masonry anchor kit)
- No bottom valance is available

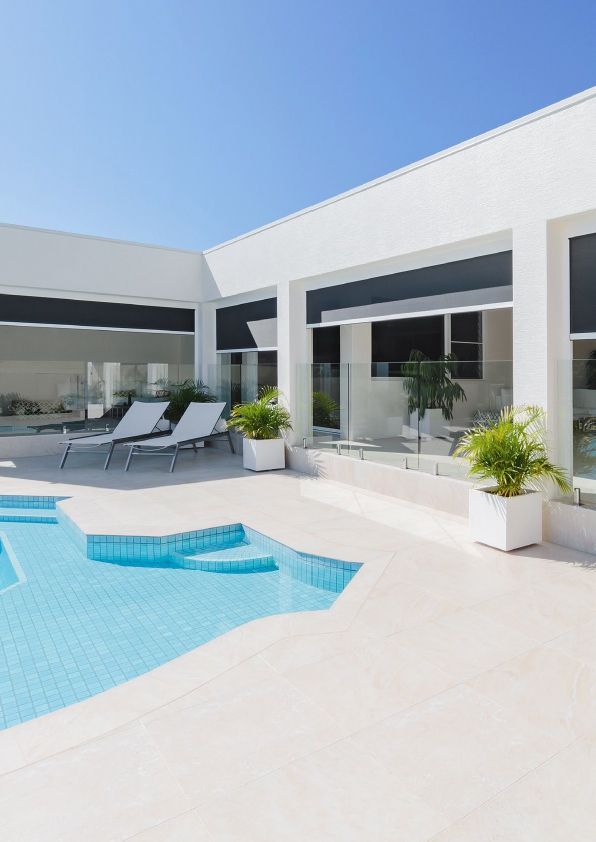

Zip Screens
Zip Screen is a leading provider of outdoor screen solutions that are designed to protect your outdoor living space from the elements while adding style and functionality to your home. Our outdoor screens are engineered to withstand the harshest weather conditions, ensuring long-lasting durability and reliable performance.
Benefits and Options
- Sun and wind protection
- Insect protection
- All seasons living
- Easy to control
- Variety of sizes, colours, and materials
- Innovative zipper system
- Manual or motorised
- Customised headbox configuration
- One action ultra-lock
- Hidden fabric retention
